Product Description
Features
- Hinge frame set for X540 series.
- Hinge frame and Idler Bearing set are included.
Package Components
Item | Quantity | Description |
---|---|---|

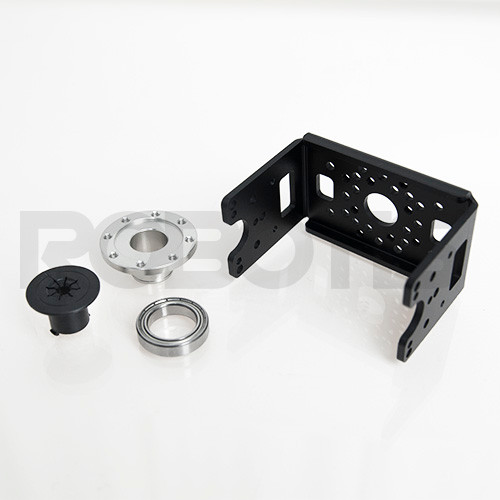

FR13-H101K | 1 | Hinge Frame for X540 |
FR13-I101 Set |
1 | Idler Horn for X540 |
Flat head Wrench Bolt FWB M2.5x17 |
4 | For Side Frame assembly |
Wrench Bolt WB M2.5x5 |
8 | For Frame assembly(Side hole) |
Wrench Bolt WB M2.5x4 |
18 | For Horn and Hinge Frame assembly |
Spacer Ring | 10 | For Frame assembly |
Compatible Products
X540-Series
How to Use

Cannot be assembled with DYNAMIXEL AX/RX/MX Series.
* This image is an example of assembling the option frame for X430 and X540 also can be assembled using the same method.
Caution
