Product Description
This product has a 60 Day Lead Time
Package Contents
| Item Name | Quantity | Description |
|---|---|---|
| XM335-T323-T | 1 | DYNAMIXEL Servo |
| Robot Cable-X3P(HRS) 80mm | 1 | TTL 3P Cable (HRS - HRS) |
| FHS_M2X06 | 1 | Bolts for horn attachment |
| CHS_M1_7X04 | 10 | Bolts for frame attachment |
| PHS_M2X04 | 14 | Bolts for frame attachment |
| HORN | 1 | Horn for XM335 |

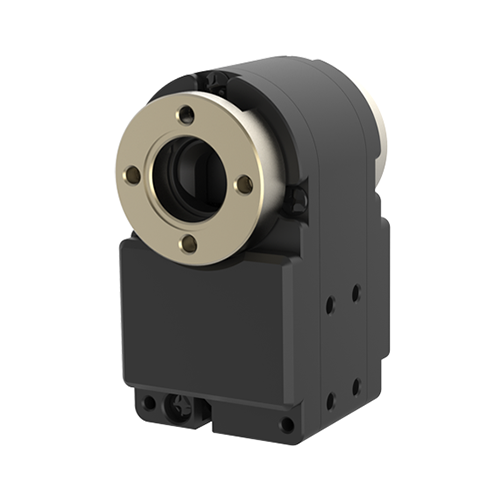

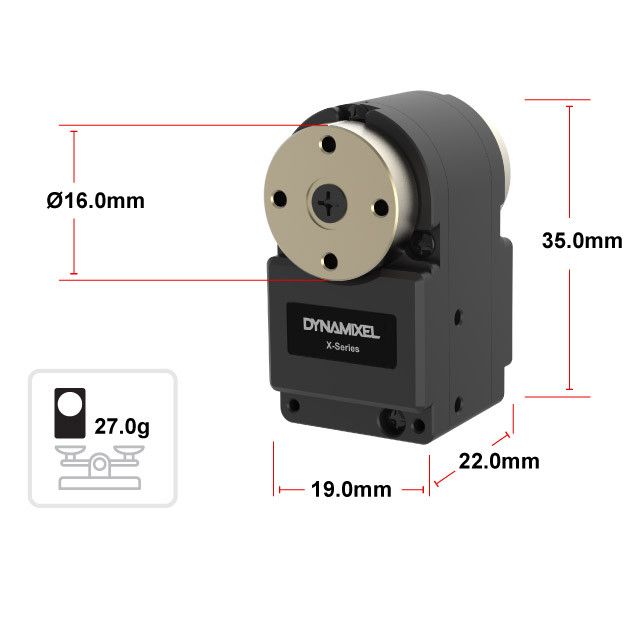

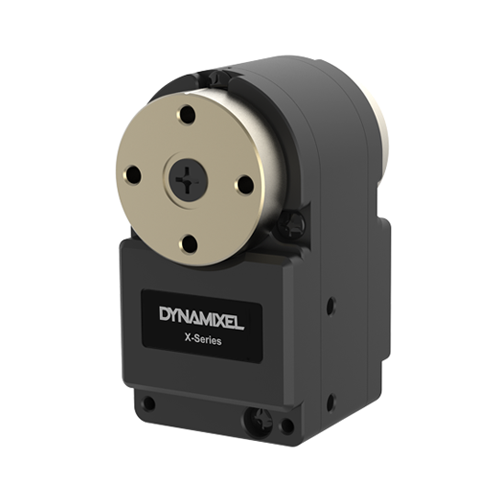

The XM335 model is a dedicated actuator for robotic fingers.
*Caution: The recommended voltage is DC 11.1V. Please exercise caution during use.
• The XM335 series is compact and lightweight, making it suitable for extremely narrow spaces.
• Durability is reinforced through metal gears and a metal case.
Key Features
1. Various Operating Modes: Velocity, Position, Extended Position, PWM, Current, Current-Based Position Control
2. Profile Control for smooth motion planning
3. Input Voltage: 6.5V ~ 12.0V (Recommended 11.1V)
4. Enhanced durability with metal gear and bearing
5. Supports RC protocol without additional converting device
6. Energy saving with reduced current consumption
Supported Features

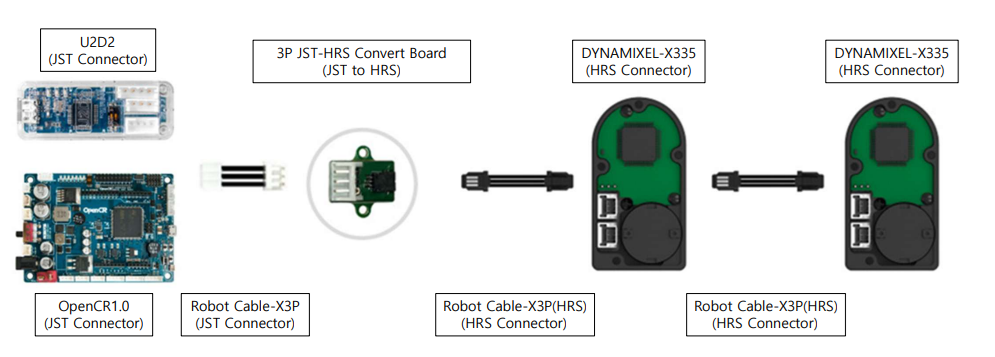

Connection Guide
Resources
