DYNAMIXEL XC430-W150-T

DYNAMIXEL XC430-W150-T

DYNAMIXEL-X

$131.89

(No reviews yet) Write a Review

SKU:: 902-0155-000
UPC:: 8809052932251
Weight:: 0.10 LBS
Shipping:: Calculated at Checkout
Estimated Rated Torque Disclosure*:: This is an estimated value for continuous torque, calculated at 20% of stall torque.
Estimated Rated Torque:: 0.32Nm
No Load RPM:: 106RPM
Dimensions:: 28.5x46.5x34mm
Supported Baudrades:: 9,600 ~ 4.5MBaud
Resolution:: 4096 Steps
Backlash:: NA
Weight:: 65g
Input Voltage:: 11.1v
Standby Current:: 46mA
Stall Current:: 1.4A
Operating Modes:: Velocity Control Mode, Position Control Mode, Extended Position Control Mode, PWM Control Mode
Communications Protocol:: TTL
Radial Load Limit:: NA
Axial Load Limit:: NA
Stall Torque:: 1.6Nm
Size:: X430
Special Features:: NA

Overview
Reviews

Product Description

Package Contents

Item	Quantity	Description
XC430-W150-T	1	DYNAMIXEL Servo
HN11-N101	1	Preinstalled
Robot Cable-X3P 180mm	1	TTL 3p Cable (JST-JST)
Bolt M2.6x5 TAP	5	For frame installation
Bolt M2x5	5	For horn & frame installation
Bolt M2.5x14	5	For frame installation
Spacer	5	For frame installation

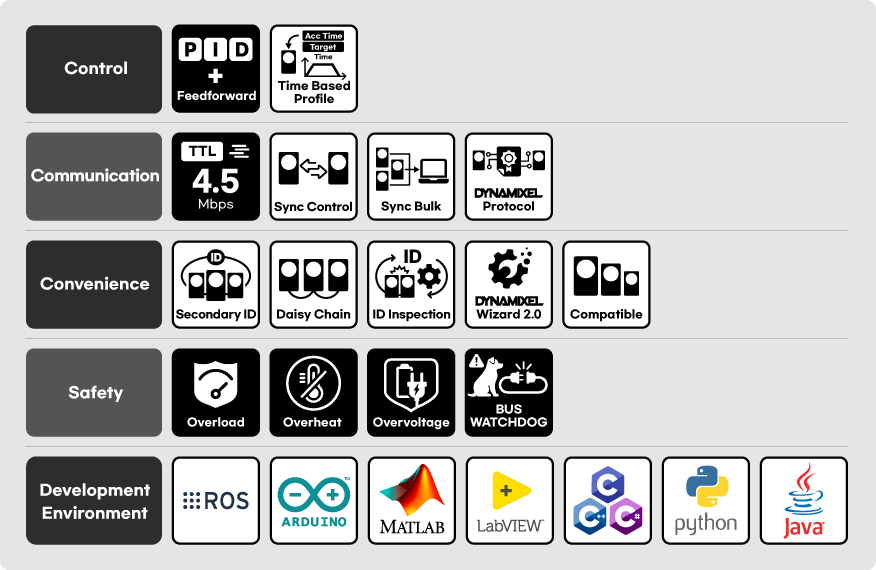

Supported Features
