DYNAMIXEL XC330-M288-T

DYNAMIXEL XC330-M288-T

DYNAMIXEL XC330-M288-T

DYNAMIXEL-X

$98.89

(No reviews yet) Write a Review

SKU:: 902-0173-000
UPC:: 8809677570586
Weight:: 0.10 LBS
Shipping:: Calculated at Checkout
Estimated Rated Torque Disclosure*:: This is an estimated value for continuous torque, calculated at 20% of stall torque.
Estimated Rated Torque:: 0.186Nm
No Load RPM:: 65RPM
Dimensions:: 20x34x26mm
Supported Baudrades:: 9,600 ~ 4MBaud
Resolution:: 4096 Steps
Backlash:: NA
Weight:: 23g
Input Voltage:: 5v
Standby Current:: 17mA
Stall Current:: 1.8A
Operating Modes:: Current Control Mode, Velocity Control Mode, Position Control Mode, Extended Position Control Mode, Current Based Position Control Mode, PWM Control Mode
Communications Protocol:: TTL, SBUS, iBUS, RC PWM
Radial Load Limit:: NA
Axial Load Limit:: NA
Stall Torque:: 0.93Nm
Size:: X330
Special Features:: RC Protocols

Overview
Reviews

Product Description

Package Contents

Item Name	Quantity	Description
XC330-M288-T	1	DYNAMIXEL Servo
Robot Cable-X3P 180mm	1	TTL 3P Cable (JST - JST)
PHS M2x6 TAP	6	Bolts for horn attachment
PHS M2x8 TAP	10	Bolts for frame attachment

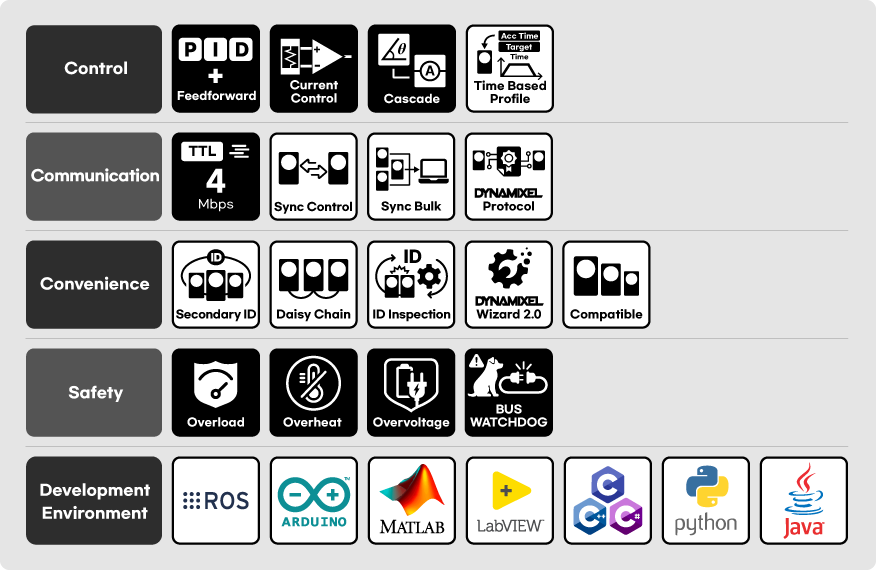

Supported Features
