DYNAMIXEL XM540-W270-R

DYNAMIXEL XM540-W270-R

DYNAMIXEL XM540-W270-R

DYNAMIXEL XM540-W270-R

DYNAMIXEL-X

$472.89

(No reviews yet) Write a Review

SKU:: 902-0133-000
UPC:: 8809052930455
Weight:: 0.70 LBS
Shipping:: Calculated at Checkout
Estimated Rated Torque Disclosure*:: This is an estimated value for continuous torque, calculated at 20% of stall torque.
Estimated Rated Torque:: 2.12Nm
No Load RPM:: 30RPM
Dimensions:: 33.5x58.5x45mm
Supported Baudrades:: 9,600 ~ 4.5MBaud
Resolution:: 4096 Steps
Backlash:: 15 arcminutes
Weight:: 165g
Input Voltage:: 12v
Standby Current:: 40mA
Stall Current:: 4.4A
Operating Modes:: Current Control Mode, Velocity Control Mode, Position Control Mode, Extended Position Control Mode, Current Based Position Control Mode, PWM Control Mode
Communications Protocol:: RS485
Radial Load Limit:: 40N
Axial Load Limit:: 20N
Stall Torque:: 10.6Nm
Size:: X540
Special Features:: External Input Port, Dual Joint Port

Overview
Reviews

Product Description

Package Contents

Item	Quantity	Description
XM540-W270-R	1	DYNAMIXEL Servo
HN13-N101	1	Servo Horn
Robot Cable-X4P 180mm	1	RS485 4p Cable (JST-JST)
Robot Cable-X4P (Convertible) 180mm	1	RS485 4p Cable (MOLEX-JST)
Robot Cable-3P-Sync 160mm	1	Dual Joint Mode Cable
Wrench Bolt WB M2.5x5	16	For frame installation
Wrench Bolt WB M2.5x4	10	For horn & frame installation
Wrench Bolt WB M3x8	1	For frame installation
Spacer Ring	8	For frame installation

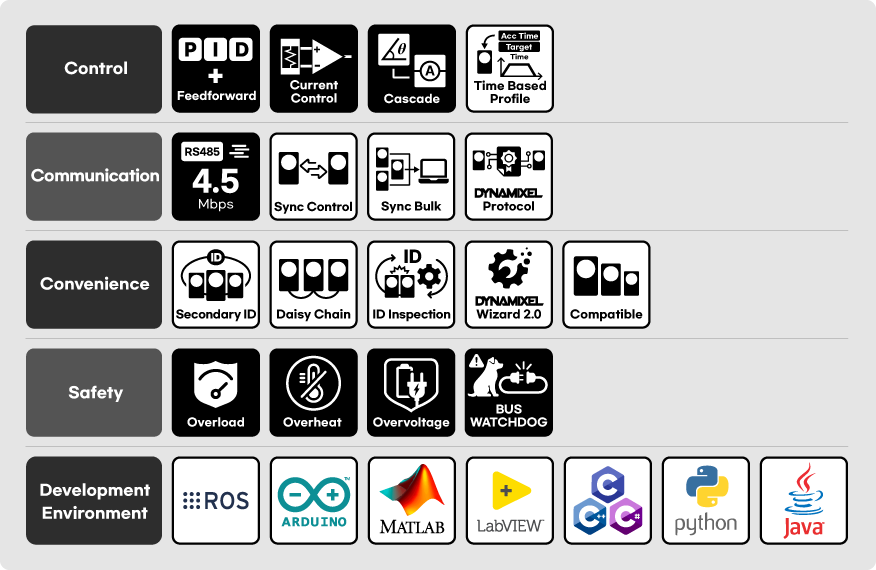

Supported Features
