Product Description
Package Contents
| Item Name | Quantity | Description |
|---|---|---|
| 2XL430-W250-T | 1 | DYNAMIXEL Servo |
| Robot Cable-X3P 180mm | 1 | TTL 3p Cable(JST-JST) |
| Bolt M2.5x5 | 10 | Bolts for frame attachement |
| Bolt M2x5 | 10 | Bolts for horn attachment |

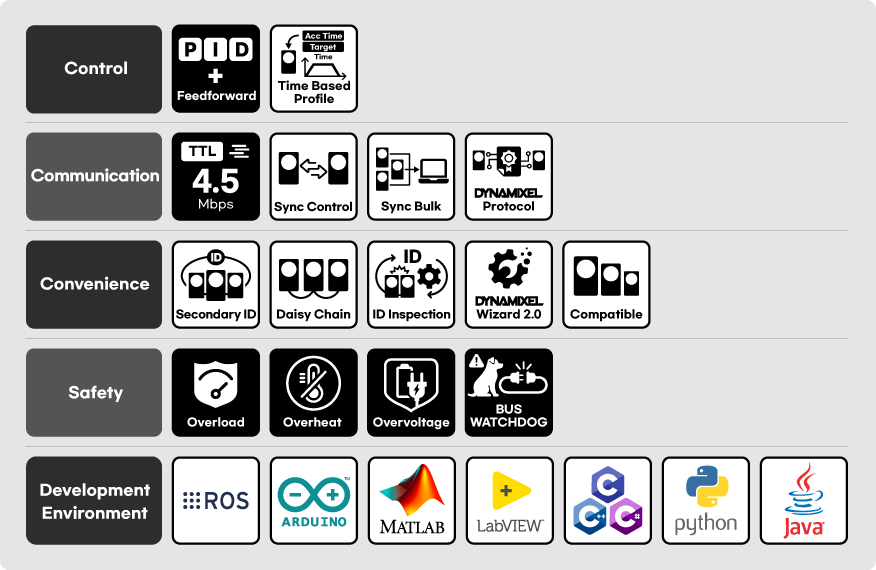

Supported Features
DYNAMIXEL 2XL430-W250-T
DYNAMIXEL-X
$142.89
- SKU:
- 902-0156-000
- UPC:
- 8809052932275
- Weight:
- 0.10 LBS
- Shipping:
- Calculated at Checkout
- Estimated Rated Torque Disclosure*:
- This is an estimated value for continuous torque, calculated at 20% of stall torque.
- Estimated Rated Torque:
- 0.28Nm
- No Load RPM:
- 57RPM
- Dimensions:
- 36x46.5x36mm
- Supported Baudrades:
- 9,600 ~ 4.5MBaud
- Resolution:
- 4096 Steps
- Backlash:
- NA
- Weight:
- 98.2g
- Input Voltage:
- 11.1v
- Standby Current:
- 49mA
- Stall Current:
- 1.3A
- Operating Modes:
- Velocity Control Mode, Position Control Mode, Extended Position Control Mode, PWM Control Mode
- Communications Protocol:
- TTL
- Radial Load Limit:
- NA
- Axial Load Limit:
- NA
- Stall Torque:
- 1.4Nm
- Size:
- 2X
- Special Features:
- Dual Axis
