HN13-I101 Set

$35.90
(No reviews yet) Write a Review
SKU:
903-0267-000
UPC:
8809052935948
Weight:
0.01 LBS
Shipping:
Calculated at Checkout

[903-0267-000] HN13-I101 Set





■ Description



Idler Bearing Set for Dynamixel X540 Series.

This idler bearing is connected to the opposite side of the output shaft of Dynamixel X, and can be used to assemble the hinge frame on it.

Patented hollow structure enables this set to be assembled with Dynamixels without screws.

(Enclosed screws are used to assemble the frame to the idler.)







■ Basic Components



Components

Quantity

Bearing Set

Bearing (6701ZZ)

1

Idler (HN13-I101)

1

Idler Cap (DC13)

1

Screw

Wrench Bolt (WB M2.5*5)

8

Wrench Bolt (WB M2.5*4)

18

* The hinge frame is not included





■ Assembly

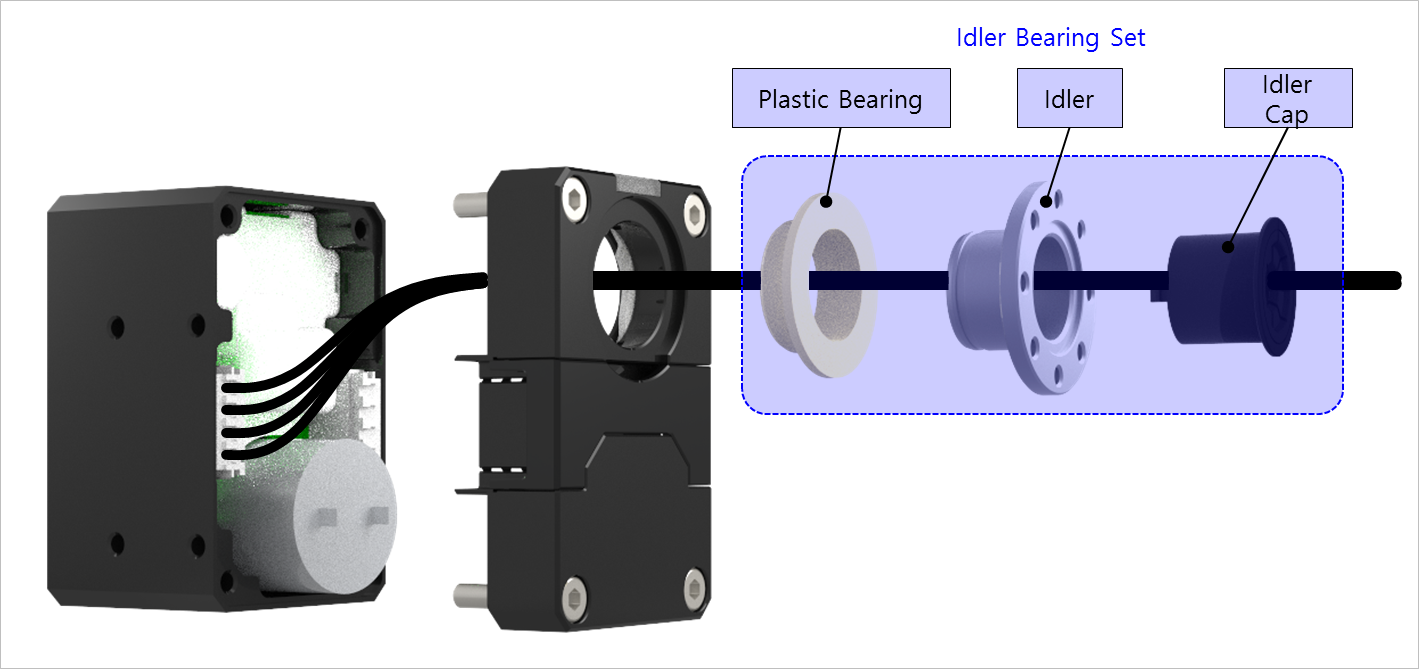

The above image is for the X430 bearing set. Bearing set for X540 is commercial metal bearing.





■ Part Features



* Bearing : Specially designed high strength engineering bearing. (Model No. : 6701ZZ)

* Idler : The idler is firmly assembled with Dynamixel by hooking mechanism and additional frames such as hinge can be assembled on it.

* Idler Cap : The cap protects debris such as screws getting into the Dynamixel through the hollow structure.





■ Warning



This idler bearing set cannot be assembled with Dynamixel MX series.
