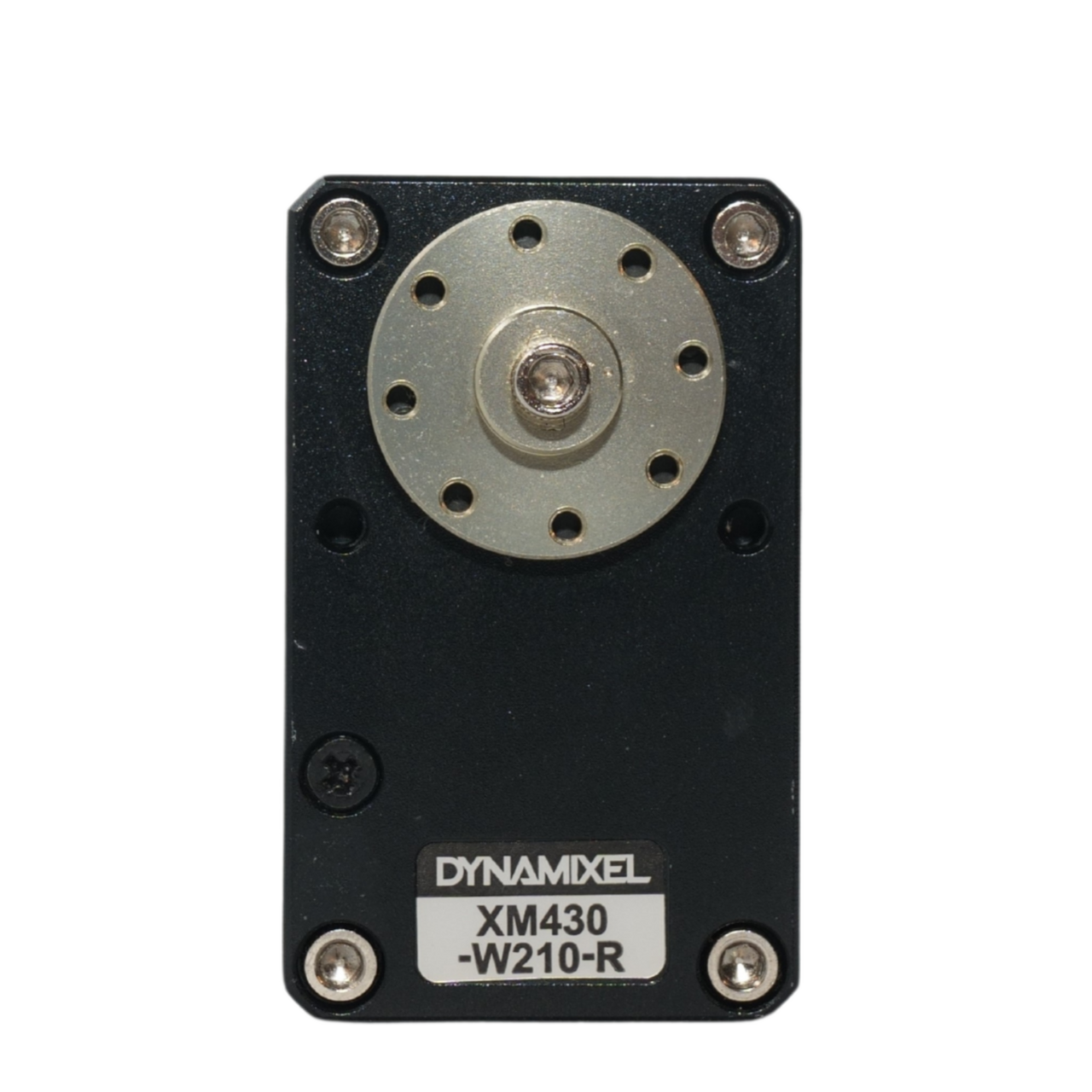

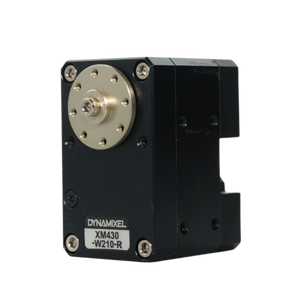

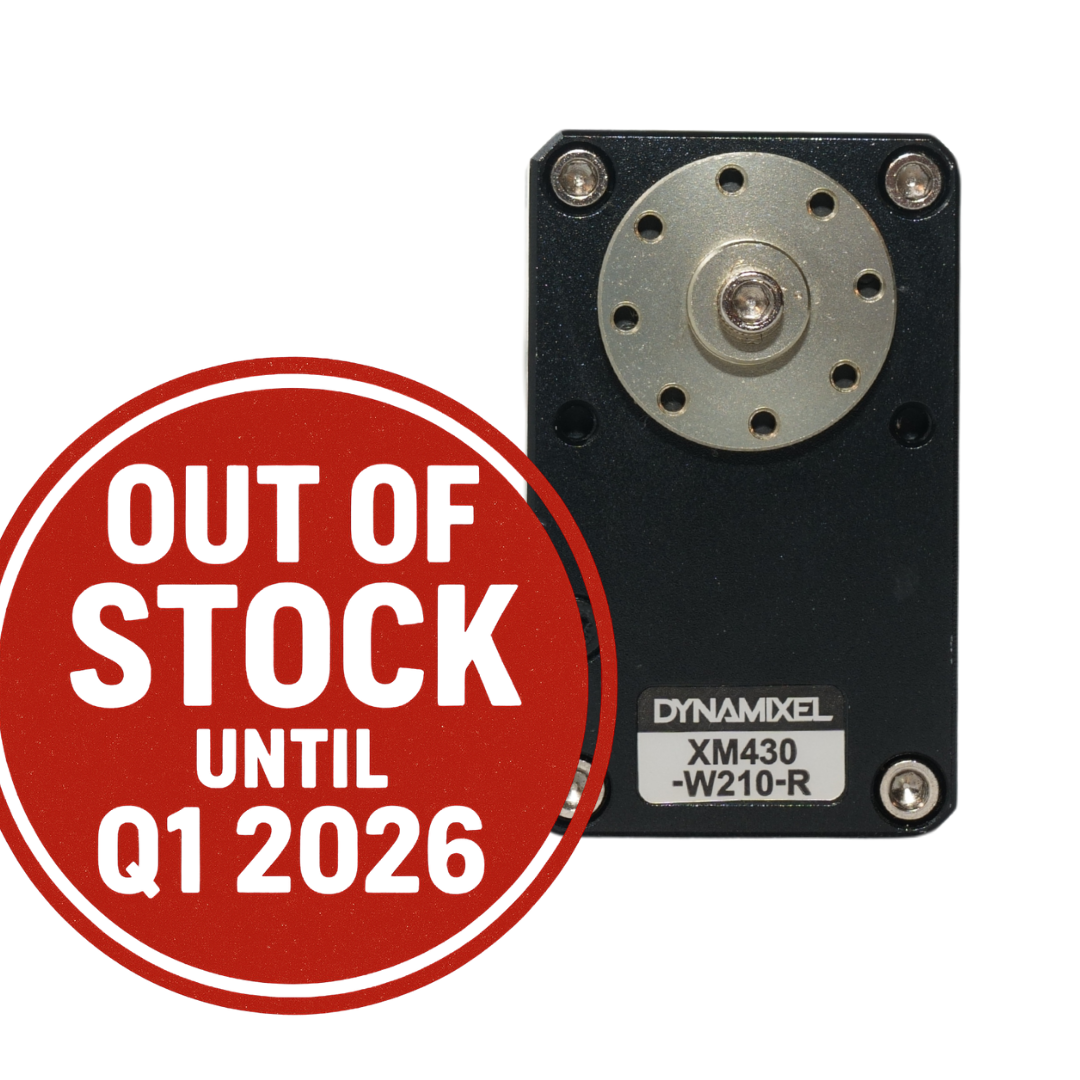

DYNAMIXEL XM430-W210-R

$239.90
SKU:
902-0119-000
Brand:
Weight:
0.30 LBS
Shipping:
Calculated at checkout
Current Stock:
69

Product Description



[902-0119-000] DYNAMIXEL XM430-W210-R


DYNAMIXEL X-Series is a new line-up of high performance networked actuator module,

which has been widely used for building multi-joint robots with reliability and expandability.



For more detailed information, please visit DYNAMIXEL X-Series Product Info



Basic Features

• Improved Torque, Compact Size
• Enhanced Durability and Expandability
• Hollow Back Case Minimizes Cable Stress (3-way-routing)
• Direct Screw Assembly to the Case(without Nut Insert)
• Improved Heat Sink Featuring an Aluminum Case

• 6 Operating Modes
• Current-Based Torque Control (4096 steps, 2.69mA/step)
• Profile Control for Smooth Motion Planning
• Trajectory Data and Moving Status (In-Position, Following Error, etc.)
• Energy Saving (Reduced Current from 100mA to 40mA)





Package Contents

Description

Quantity

DYNAMIXEL

XM430-W350-R

1

HORN

HN12-N101

1

WASHER

Teflon Washer (for Horn Assembly)

1

CABLE

Robot Cable-X4P 180mm

1

Robot Cable-X4P (Convertible) 180mm

1

BOLT/NUT

Wrench Bolt (WB M2.5*4)

16

Wrench Bolt (WB M2.5*6)

1

Wrench Bolt (WB M2*3)

10

ETC

Spacer Ring

8





H/W Specification

Model Number

XM430-W210-R

Weight

82g

Dimension

28.5mm x 46.5mm x 34mm

Gear Ratio

212.6 : 1

Operation Voltage (V)

11.1

12

14.8

Stall Torque (N.m)

2.7

3.0

3.7

Stall Current (A)

2.1

2.3

2.6

No Load Speed (RPM)

70

77

95



MCU

ST CORTEX-M3 ( STM32F103C8 @ 72MHZ, 32BIT)

Position Sensor

Contactless absolute encoder (12bit, 360degree) by AMS

Motor

Coreless Motor

Resolution

Approx. 0.088° x 4,096

Operation Range

Position Control Mode : 360°

Extended Position Control Mode : 512 turns

Velocity Control Mode : Endless turn

Operation Voltage

10~14.8V (Recommended voltage : 12V)

Operating Temperature

-5°C ~ 80°C

Command Signal

Digital Packet

Protocol Type

RS485 Asynchronous Serial Communication (8bit, 1stop, No Parity)

Link (physical)

RS485 Multi Drop Bus (daisy chain type connector)

ID

253 ID (0~252)

Baud Rate

9600 bps ~ 4.5 Mbps

Feedback

Position, Velocity, Current, Realtime tick, Trajectory, Temperature, Input Voltage, etc.

Material

Case : Metal (Front, Middle)

          Engineering Plastic (Back)

Gear : Full Metal

Standby current

40 mA





Default Setting

ID : 1

Baud Rate : 57,600bps

(Please make necessary modifications after purchase. Such as the ID, baud rate, etc)









■ Hyperlinks



Controller Compatibility Chart : Click Here



Frame, Idler Compatible Chart : Click Here



Download Drawing : Click Here



Software RoboPlus (R+) : Click Here



DXL SDK 3.0 for Windows/Linux (Github): Click Here



OpenCM IDE : Click Here



Link to e-Manual : Click Here



DXL Firmware : Click Here



Caution

DYNAMIXEL X-Series adopted new JST connector

with gold plating for secure and reliable communication.

For more information, please visit e-Manual [DYNAMIXEL Connector Standard]

To control DYNAMIXEL X-Series via OpenCM or USB2Dynamixel,

please use JST-Molex Convertible Cable enclosed in the package.
